What Are HRC Fuses? Working Principle, Types, Ratings, Selection, and Applications

If you’re evaluating protection for power distribution, motors, transformers, drives, batteries, or PV arrays, HRC fuses are often the most reliable, cost-effective solution for handling severe short circuits. This guide goes beyond basic definitions to help you understand HRC fuse construction, performance characteristics, standards, selection, coordination, and best practices—so you can make safer, faster, and more economical decisions and outrank less comprehensive resources.

Quick takeaways

HRC (High Rupturing Capacity) fuses—also called HBC (High Breaking Capacity)—are engineered to safely interrupt extremely high fault currents without exploding or sustaining damage.

They are “current-limiting” devices that drastically reduce peak fault current and I²t energy, protecting cables, busbars, insulation, and downstream equipment.

Compared to breakers, HRC fuses are more compact, faster at interrupting severe faults, and simpler to coordinate—though they are single-use and require replacement after operation.

Correct selection depends on voltage rating, utilization category (gG, aM, aR/gR, gPV), breaking capacity, I²t, ambient conditions, and coordination with upstream/downstream devices.

What “Rupturing Capacity” really means

Rupturing (breaking) capacity is the maximum prospective short-circuit current the fuse can safely interrupt at its rated voltage without violent rupture.

HRC fuses are tested to interrupt high symmetrical and asymmetrical fault currents, including DC components and recovery voltage stresses.

Typical LV HRC fuses have breaking capacities in the 80–120 kA range at 400–690 V AC. HV current-limiting fuses (medium voltage) handle tens of kA at several kV per IEC test conditions.

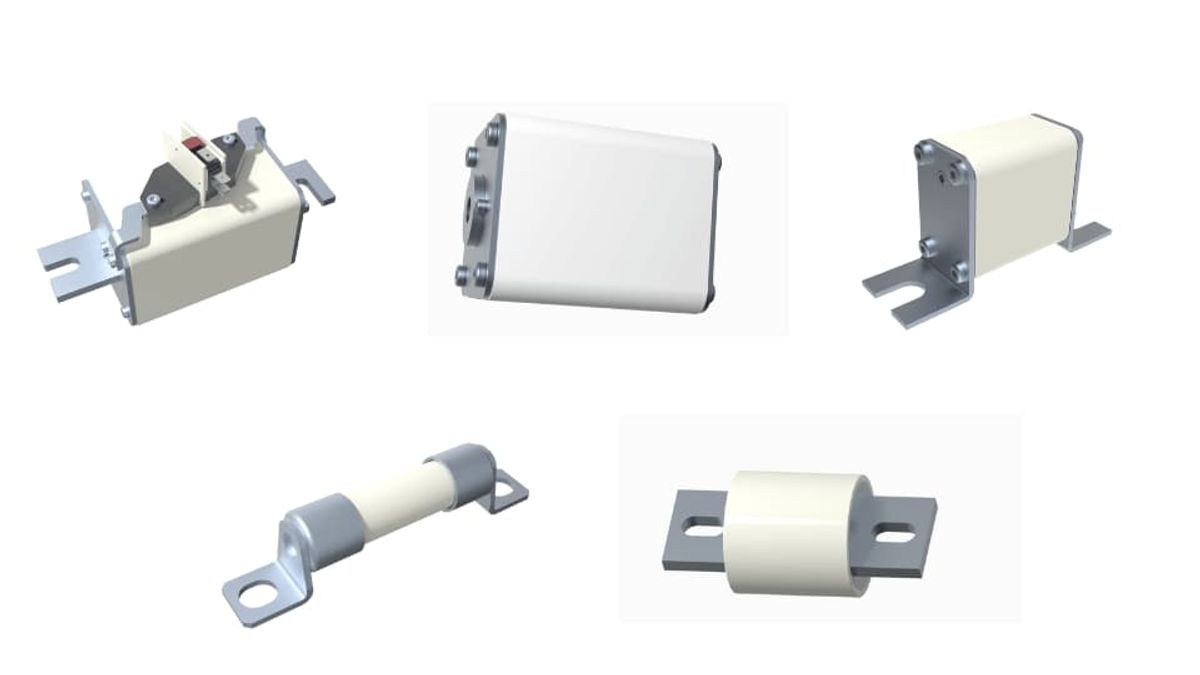

Inside an HRC fuse: construction and materials

Body

High-strength ceramic or equivalent housing, designed to withstand internal pressures and high temperatures.

Filler

High-purity silica sand (or quartz) tightly packed around the element to quench arcs and absorb energy.

Fuse element

Silver or copper alloy with carefully shaped notches and restrictions that control melting and arcing behavior.

End caps/terminals

Precision contacts for low resistance and reliable heat dissipation; NH blade or BS88-style end caps are common in LV.

Striker pin/indicator (where applicable)

Mechanical indicator that can trip a switch-disconnector or simply show operation.

How an HRC fuse works in a real fault

Pre-arcing phase

When current exceeds the element’s threshold, localized hot spots melt first (thanks to notches), initiating one or more arcs.

Arc quenching

The arc is rapidly fragmented into many smaller arcs and cooled by silica sand, which also vitrifies around the arc path to help extinguish it.

Current limiting effect

The fuse interrupts the fault before current reaches its natural peak, sharply reducing let-through current and I²t energy. This protects conductors, insulation, and sensitive semiconductors.

Result

Very fast clearing at high multiples of rated current; predictable energy let-through; minimal mechanical and thermal stress on the system.

HRC vs. other fuses and breakers

Compared to MCBs/MCCBs, HRC fuses clear severe faults faster and with lower let-through energy, often enabling tighter coordination and better equipment protection.

They are passive and highly reliable—no settings to misconfigure—but they must be replaced after operating.

Breakers offer reusability, adjustability, and remote control; however, at extreme fault levels, fuses can provide superior limitation and simplicity.

In semiconductor protection, aR/gR fuses are typically mandatory due to their ultra-low I²t limits and extremely fast clearing behavior.

Standards and nomenclature to know

IEC 60269 (LV fuses)

Defines dimensions, performance, and utilization categories such as gG (general-purpose), aM (motor short-circuit), aR/gR (semiconductor), gPV (photovoltaic).

IEC 60282-1 (HV fuses)

For high-voltage current-limiting fuses used in MV applications (e.g., transformer primary protection).

BS88 (LV), UL/CSA (North America) provide regional dimensions and performance requirements.

Terminology

“HRC” and “HBC” are often used interchangeably for high-breaking-capacity, current-limiting fuses.

Types of HRC fuses and where they fit

gG (general-purpose, full-range)

Cable and feeder protection in LV panels; covers overloads and short circuits.

aM (motor)

Short-circuit protection only; pair with thermal overload relays for overload protection. Good for DOL starters and MCCs.

aR/gR (semiconductor)

Ultra-fast protection for VFDs, rectifiers, UPS, inverters, and drives. gR is full-range; aR is short-circuit only.

gPV (photovoltaic)

Designed for DC arrays, with suitable DC voltage ratings and anti-aging behavior under cycling irradiance.

HV current-limiting fuses (per IEC 60282) are commonly used on transformer primaries and ring-main units for MV networks.

Key performance concepts

I²t (energy let-through)

Quantifies thermal stress during a fault. Pre-arcing I²t and total clearing I²t are specified in datasheets; match to cable or semiconductor limits.

Prospective short-circuit current (PSCC)

Calculate at the protection point; your fuse’s breaking capacity must exceed this at the applicable voltage and power factor.

Time-current curves

Inverse behavior; at moderate overloads fuses take longer to melt; at high multiples they operate in milliseconds.

Voltage rating matters

AC and DC capabilities are different; high DC ratings require particular element geometry and longer arc paths.

Ambient and enclosure effects

Elevated temperature and enclosure heat raise element temperature; apply manufacturer derating factors.

How to select the right HRC fuse: a practical workflow

Define the application and protective function

Are you protecting cables/feeders (gG), motors (aM + overload relay), or power electronics (aR/gR)?

Determine whether overload protection must be provided by the fuse (gG/gR) or by a separate device (aM/aR).

2. Determine voltage and system characteristics

Choose a fuse with a voltage rating ≥ system nominal voltage, and suitable for AC or DC as applicable.

Confirm insulation level and overvoltage category; for MV, use IEC 60282-1 current-limiting types.

3. Size the current rating

Start from the steady-state load current and consider duty cycles.

Apply ambient/enclosure derating per the manufacturer. In warm panels or compact enclosures, choose the next higher amp rating if needed.

For motors: use aM fuses sized to allow motor starting inrush without nuisance operation, and rely on overload relays for thermal protection.

4. Check breaking capacity vs. PSCC

Your fuse’s breaking capacity must be ≥ the calculated prospective short-circuit current at the installation point.

If utility fault level is given as MVA at the bus, a common estimate is: PSCC (A) ≈ MVA × 10^6 / (√3 × V_line-to-line).

5. Verify I²t and coordination

For semiconductors, ensure total clearing I²t is below the device’s withstand energy.

Coordinate downstream and upstream devices for selective tripping. Many manufacturers publish “selectivity tables” for fuse–breaker and fuse–fuse combinations.

6. Choose the physical form factor and accessories

NH blade, BS88 cylindrical, or manufacturer-specific LV forms; for MV, select the correct striker-pin type to trip a switch-disconnector if required.

Use fuse-switch disconnectors and holders rated for the same voltage and breaking capacity.

7. Documentation and compliance

Match IEC/BS/UL product standards to your local code requirements and panel certifications.

Record chosen rating, utilization category, breaking capacity, I²t values, and coordination calculations.

Example scenarios

LV feeder protection in a 400 V switchboard

PSCC calculated at the board is 65 kA. Choose a gG HRC fuse with breaking capacity ≥80 kA at 400–500 V AC. Size the amp rating above continuous load including ambient derating, and confirm cable I²t withstand.

Motor circuit

DOL motor with high inrush. Use aM fuses sized to ride through starting current and pair with a thermal overload relay for overloads. Verify selectivity with upstream gG fuses or MCCBs.

VFD/rectifier protection

Use aR/gR semiconductor fuses with ultra-low I²t; check datasheet coordination charts against your drive’s diodes/IGBTs.

MV transformer primary

Use IEC 60282-1 current-limiting HV fuses with striker pins to trip the switch. Select by transformer kVA, inrush characteristics, and network fault level; confirm coordination with secondary LV protection.

Installation best practices

Mount fuses in dedicated, rated fuse-switch disconnectors or holders; never mix form factors or ratings.

Torque terminals to manufacturer specifications; poor connections cause overheating.

Maintain clearances and ventilation; avoid bundling cables that raise local temperature.

Verify polarity and DC ratings in PV and battery systems.

Use mechanical interlocks or lockouts on fuse switches to prevent live insertion/removal.

Maintenance and safety

Always de-energize and verify isolation before replacing fuses; use appropriate PPE for arc-flash-rated tasks.

Inspect for discoloration, cracked ceramic, or melted indicators—these signal overheating or past operations.

Keep a log of operations; investigate root causes rather than simply replacing fuses repeatedly.

Infrared scans help identify loose terminations and abnormal heating.

Common mistakes to avoid

Underrating breaking capacity—never install a fuse where PSCC exceeds its capability.

Ignoring voltage rating and DC capability—AC-only fuses may not interrupt DC safely.

Relying on aM or aR fuses for overload protection—these are short-circuit categories; pair with overload relays or thermal protection.

Assuming “bigger is safer”—oversizing increases fault energy and can defeat coordination.

Mixing standards or body sizes in the same holder—causes poor contact and dangerous heating.
