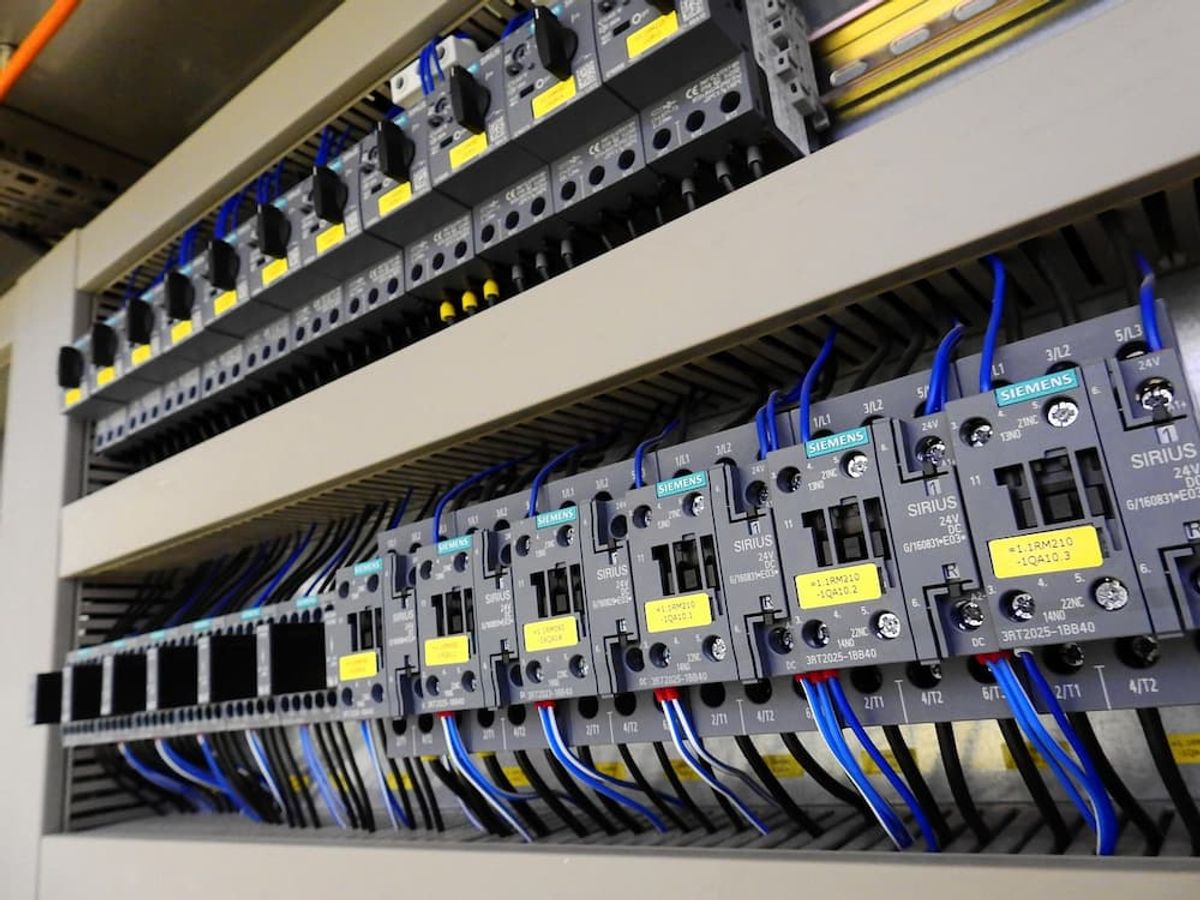

Types of Circuit Breakers: A Technical Guide to Selection and Application

A 50 MWh utility-scale battery can deliver a fault current exceeding 65 kA. Protecting such an asset requires a precise understanding of DC interruption. The physics of extinguishing a DC arc, which lacks a natural current zero, is fundamentally different from AC interruption. This technical distinction drives the critical design choice between specialized DC circuit breakers and alternative protection schemes, such as pairing a high-cycle DC contactor with a fast-acting fuse. This guide details the specifications that define that choice.

What is a circuit breaker?

A circuit breaker is an automatic electromechanical device with two primary functions:

Interrupting overcurrents from overloads and short circuits.

Providing a point of manual circuit isolation.

Its operation sequence involves sensing, triggering, and interruption. An internal trip unit—thermal, magnetic, or electronic—senses the fault. This action releases a latch, allowing a spring-loaded mechanism to separate the contacts. The resulting arc is elongated, cooled, and extinguished within an interrupting medium.

Key performance ratings dictate selection:

Rated Voltage (V): Maximum system voltage, e.g., 480V AC, 1500V DC.

Continuous Current (A): The ampacity of the breaker, e.g., 250A frame.

Interrupting Capacity (kA): Maximum fault current it can safely clear. A residential MCB might be rated for 10 kA, while a main industrial ACB can exceed 100 kA.

Trip Curve: Defines the time-current response. For example, a Type C curve (IEC 60898-1) is specified for general inductive loads, tripping magnetically between 5 and 10 times its rated current.

Classification by Voltage Level

Breakers are specified for the voltage class of their application.

Low Voltage (LV): Systems up to 1,000 V AC or 1,500 V DC. LV breakers are found in building distribution, industrial controls, and the DC side of solar and BESS installations.

Medium Voltage (MV): Systems from 1 kV to 72.5 kV. These breakers protect utility distribution feeders and large industrial motor circuits.

High Voltage (HV): Systems at or above 72.5 kV. HV breakers are large installations in transmission substations, with some transmission lines operating at or above 765 kV.

HVDC Considerations: HVDC systems, such as a ±500 kV transmission link, present a unique challenge. The absence of a current zero requires specialized HVDC breakers with complex interruption technologies. Their high cost and limited availability often lead engineers to specify different protection solutions.

Types by Interrupting Medium

The medium used to extinguish the arc defines the breaker’s core technology.

Air Circuit Breakers (ACB)

Interrupt in air at atmospheric pressure. Used for high-current LV applications (800A–6300A), they employ arc chutes to stretch and cool the arc.

Vacuum Circuit Breakers (VCB)

Contacts are housed in a sealed vacuum interrupter. The vacuum’s high dielectric strength enables rapid arc extinction, making VCBs the dominant technology in MV switchgear up to 38 kV.

SF6 Circuit Breakers

Sulfur hexafluoride (SF6​) gas is an effective insulator and arc quencher. It is common in MV and HV AC breakers. However, SF6​ has a Global Warming Potential (GWP) ~23,500 times that of CO2, requiring strict handling protocols (EPA 40 CFR Part 98) and driving a search for alternatives.

DC-Specific Technologies

Magnetic Blow-out: Coils or permanent magnets generate a field that forces the DC arc into an arc chute, elongating it to aid extinction.

Hybrid HVDC: Combines power electronics (IGBTs) with a mechanical disconnector. The IGBTs commutate current in under 2ms, allowing the mechanical switch to open in a zero-current state.

Solid-State: Fully semiconductor-based (IGBTs/MOSFETs). They offer microsecond-level interruption but introduce continuous conduction losses (Vf​).

Types by Construction and Form Factor

Miniature Circuit Breakers (MCB)

DIN-rail mountable with current ratings typically up to 125 A and fixed thermal-magnetic trips. DC-rated versions (per UL 489B) are standard for PV string protection.

Molded Case Circuit Breakers (MCCB)

Enclosed in a molded, non-metallic case. They handle higher currents (up to ~3,000 A) with high interrupting ratings. Many have adjustable electronic trip units.

Motor Protective Circuit Breakers (MPCB)

Designed for motor branch circuits, featuring adjustable Class 10/20 thermal overload protection and a high magnetic trip setting to accommodate starting inrush.

Residual Current Devices (RCD/RCBO)

Detect and interrupt low-level ground faults (30mA for personnel protection). For systems with DC components like EV chargers, Type B RCDs are required to detect smooth DC fault currents, which Type A and AC devices cannot see.

Trip and Sensing Technologies

Thermal-Magnetic

A bimetal strip provides slow, inverse-time overload protection. A separate magnetic solenoid provides instantaneous short-circuit protection. It is the standard for MCBs and basic MCCBs.

Hydraulic-Magnetic

A sealed dashpot assembly provides a trip response that is largely independent of ambient temperature. This precision is valuable in harsh-environment and military applications.

Electronic

A microprocessor-based unit fed by internal current transformers. It allows for highly customizable protection curves, including LSI/G functions (Long-time, Short-time, Instantaneous, Ground-fault). This adjustability is essential for achieving selective coordination in complex distribution systems.

What’s Different About DC Circuit Breakers?

DC fault interruption is an energy management problem. Without a current zero, the breaker must actively force the current down.

Arc Extinction: The breaker must generate an arc voltage greater than the system voltage to force current to zero. For a 1000V DC system, the arc voltage must exceed 1000V. This requires powerful magnetic blow-outs and multi-pole series connections to create sufficient arc length and resistance.

Polarity: Many DC breakers are polarized, with designated line (+) and load (-) terminals. Reversing polarity can cause the magnetic blow-out to force the arc into the mechanism instead of away from it, causing catastrophic failure.

Bidirectionality: BESS and regenerative drive applications require non-polarized breakers certified for bidirectional fault interruption. A standard DC breaker may not clear a fault current flowing in the reverse direction.

Applicable Standards

Certifications must be verified against IEC 60947-2 (Annex P) for industrial DC breakers, UL 489 for North American applications, and IEC 60898-2 for residential DC MCBs.

Selecting the Right Circuit Breaker

Selection is a technical process based on system parameters.

System Voltage and Topology: Confirm AC vs DC, maximum voltage, and grounding scheme. For DC breakers >60V, determine the required number of poles in series to achieve the voltage rating.

Interrupting Capacity: Calculate the prospective short-circuit current (Isc​). The breaker’s kA rating must exceed this value. For DC systems, the time constant (L/R) is critical; a longer time constant (e.g., >15ms for large batteries) represents a more severe interrupting duty.

Trip Curve & Coordination: Ensure the trip settings protect conductors and equipment while coordinating with upstream and downstream devices to achieve selectivity.

Environmental Conditions: Apply de-rating factors for high ambient temperatures (e.g., a 100A breaker may be rated for 85A at 55°C) and high altitudes. Confirm IP rating, shock, and vibration specifications (e.g., IEC 60068-2-27).

Circuit Breakers vs. Contactors vs. Fuses

In high-power DC systems, a circuit breaker is not the only solution.

Circuit Breaker: Combines resettable overcurrent protection and switching. Its mechanical endurance is limited, typically 5,000-10,000 operations. For HVDC, they are expensive and have limited availability.

Contactor: A high-endurance switch designed for frequent load cycling. Electrical endurance can exceed 1 million cycles. It provides no overcurrent protection.

Fuse: A single-use overcurrent device. It offers the fastest fault clearing and superior current limitation (low let-through energy, I2t), essential for protecting semiconductors.

Dominant DC Architecture: Contactor + Fuse

For BESS, EV fast chargers, and rail systems, this combination is often superior.

The contactor handles the high-cycle connection and disconnection of the load.

The fuse provides fast, reliable, and cost-effective short-circuit protection.

This decoupled architecture allows each component to be optimized for its function. For example, a system might pair a high-voltage Gigavac contactor with a Mersen semiconductor fuse to protect a DC-DC converter, a solution that is more compact and available than a comparable 1000V DC breaker.

Application Snapshots

Solar PV: Use of UL 489B listed DC MCBs for 1000V/1500V string protection is standard practice. MCCBs are used in combiner boxes.

Battery Energy Storage (BESS): The main battery disconnect frequently uses a contactor and fuse combination. Rack-level protection may use fuses for current limiting to protect cells.

EV Fast Charging: DC links operating at 800V and above often depend on a contactor-fuse pair for primary protection due to the high fault currents and need for fast-acting semiconductor protection.

Marine & Rail: Systems require breakers and contactors certified by bodies like DNV or ABS to withstand high shock and vibration. Hydraulic-magnetic breakers are often specified for their thermal stability.

Compliance and Standards

Verification against the correct standard is mandatory.

LV Industrial: IEC 60947-2, UL 489

LV Installation: IEC 60898-1 (AC), IEC 60898-2 (DC)

Supplementary: UL 1077

MV/HV AC: IEC 62271-100

Always consult manufacturer datasheets for specific DC ratings, as they often depend on pole configuration, voltage, and the L/R time constant.
