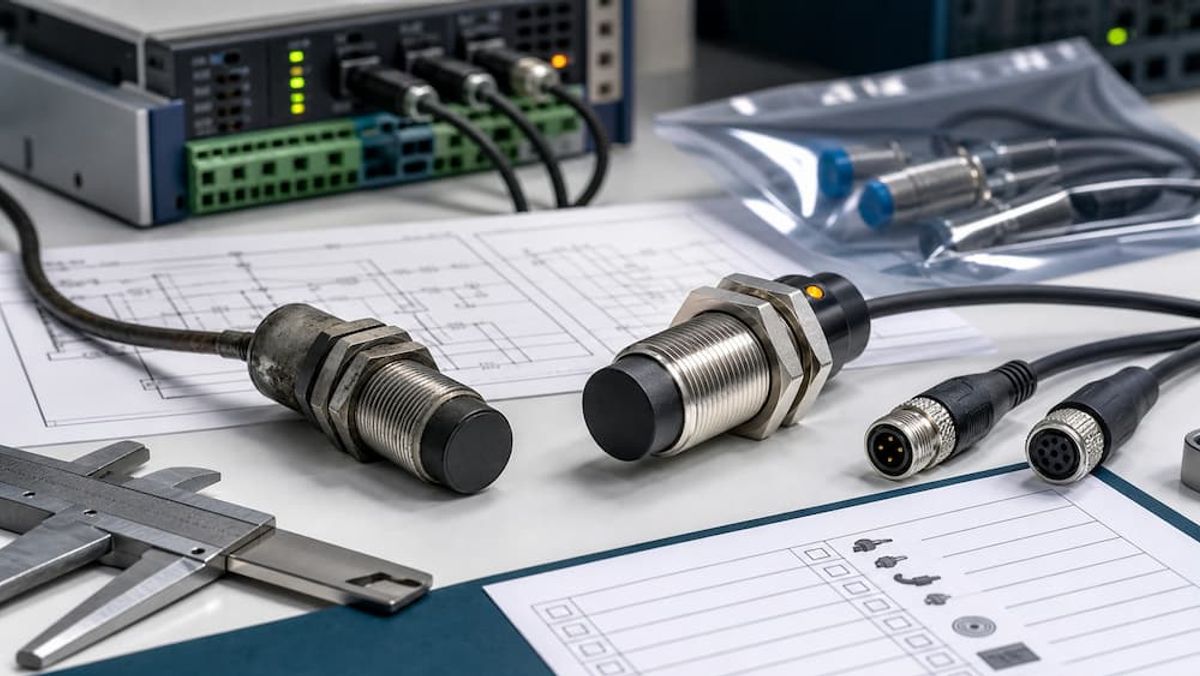

How to Find a Replacement for a Discontinued Proximity Sensor

Quick answer: To replace a discontinued proximity sensor, do not match only the shape or brand. Match the part number, sensor type, supply voltage, output type, normally open or normally closed function, sensing distance, flush or nonflush mounting, housing size, connector or cable type, cable length, IP rating, and application environment. If any of these details are unclear, send photos of the old sensor, label, wiring, connector, and machine position before buying a replacement.

A discontinued proximity sensor can look simple, but a wrong replacement can stop a machine just as easily as a failed sensor. Two sensors may both be M12 cylindrical sensors, but one may be PNP normally open and the other NPN normally closed. One may be flush mountable, while another needs free space around the sensing face. One may have a 2 mm sensing distance, while the replacement you found online has 8 mm and triggers too early.

For maintenance and procurement teams, the safest replacement process is not "find something that looks close." The safer process is to identify the electrical output, sensing behavior, mechanical fit, and installation conditions before placing the order.

Start With the Old Sensor, Not the Catalog

The best replacement search starts with the failed sensor itself. If the label is still readable, record the full model number exactly as printed. Do not shorten it. Sensor part numbers often encode housing size, sensing distance, cable or connector type, output polarity, switching function, and body length.

If the label is damaged, take clear photos from multiple angles. The front face, side label, cable exit, connector, bracket, and wiring terminal can all help identify the correct replacement path.

Photos to Send Before Sourcing

Full sensor body photo

Nameplate or printed model code close-up

Thread or housing size view

Connector or cable exit view

Wiring terminal or PLC input connection if available

Installed position on the machine

Target object the sensor detects

The Replacement Checklist

Use this table before you approve a substitute. A replacement sensor should match the critical items, or the difference should be reviewed by engineering before purchase.

Match the Sensor Type First

Many buyers say "proximity sensor" when they mean several possible sensor technologies. The replacement depends on what the sensor detects and how it is installed.

NPN vs PNP: Do Not Guess

NPN and PNP are not small details. They define how the sensor output switches in the control circuit. If the machine expects a PNP sourcing signal and the replacement sensor is NPN, the PLC input may not respond correctly. The sensor may be good, but the replacement will still fail in the machine.

If the old label includes NPN or PNP, include it in the RFQ. If not, send the wiring diagram, wire colors, PLC input module information, or a photo of the old wiring. A supplier can often narrow the options, but they should not pretend to know the output type without evidence.

What to Check

Is the sensor 2-wire, 3-wire, 4-wire, or analog?

Is the output NPN, PNP, relay, analog, or IO-Link?

Does the PLC input module require sinking or sourcing wiring?

Is the sensor normally open, normally closed, or programmable?

Are there status LEDs that show output state?

NO vs NC: Match the Switching Function

Normally open and normally closed describe how the output behaves in its normal state. In replacement work, this can be confusing because the "normal" state depends on sensor type and installation. The practical rule is simple: match the old switching function unless the machine logic is intentionally being changed.

A normally open replacement may cause a fault if the old sensor was normally closed. A normally closed replacement may keep an input active when the machine expects it to be inactive. If you are not sure, ask the maintenance team to record the PLC input state when the target is absent and when the target is present.

Sensing Distance Is Not Just a Bigger Number

A larger sensing distance is not automatically better. For an inductive sensor, the stated sensing range is based on defined test conditions and a standard metal target. In the real machine, target material, target size, mounting, temperature, and nearby metal can change the usable operating distance.

If the old sensor had a short sensing distance, replacing it with a long-range sensor may cause early triggering. If the old sensor was already at the edge of its detection range, a replacement with lower usable range may miss the target. Send both the rated sensing distance and the actual installation gap when possible.

Flush and Nonflush Mounting Can Change the Result

For inductive proximity sensors, flush and nonflush mounting are especially important. A flush-mountable sensor can sit inside metal more safely. A nonflush sensor often needs free space around the sensing face. If the wrong style is installed in the same bracket, the sensor may lose range or false trigger.

Pepperl+Fuchs notes that installation conditions affect operating distance and spacing for inductive sensors. This is why a photo of the installed sensor is more useful than a part number alone when exact stock is unavailable.

Connector, Cable, and Pin Count Matter

Many replacement mistakes happen after the electrical specification is already correct. The buyer finds the right sensor output and sensing distance, but the wrong connector. The old sensor may be a pre-wired 2 m cable, while the replacement is an M12 connector version. Or the body is correct, but the pinout does not match the existing cable.

When an Exact Replacement Is Unavailable

If the original sensor is discontinued, the first sourcing route is to search for exact old stock. That may be possible, but it is not always the safest or fastest choice. A compatible replacement may be better if the exact old stock is expensive, untraceable, physically aged, or only available in unknown condition.

Before accepting a compatible replacement, compare the datasheets and confirm the machine requirements. If the sensor is part of a safety-related function or a validated production process, do not substitute casually. The replacement should be reviewed by the responsible engineer.

Good Alternative Wording for an RFQ

"Exact model preferred, but compatible replacement can be reviewed."

"Same PNP NO output and M12 connector required."

"Sensing distance must be close to the original because of tight mounting space."

"Flush mount is required; nonflush is not acceptable."

"Please quote exact stock and replacement option separately."

Bad Replacement Search vs Good Replacement Search

Final Checklist Before You Buy a Replacement Sensor

Full old part number is recorded.

Sensor type is known or application photos are available.

Voltage is confirmed.

NPN/PNP or output type is confirmed.

NO/NC switching function is confirmed.

Sensing distance and actual target gap are checked.

Flush or nonflush mounting is confirmed.

Housing size, thread, body length, and connector are checked.

Environment requirements such as oil, coolant, washdown, dust, or heat are considered.

Exact stock and compatible replacement options are compared separately.

If your machine uses a discontinued proximity sensor, send AOPUELEC the old part number, photos, wiring details, and application notes. A complete RFQ makes it easier to check exact stock, compare compatible replacements, and avoid a sensor that fits the bracket but fails in the machine.
