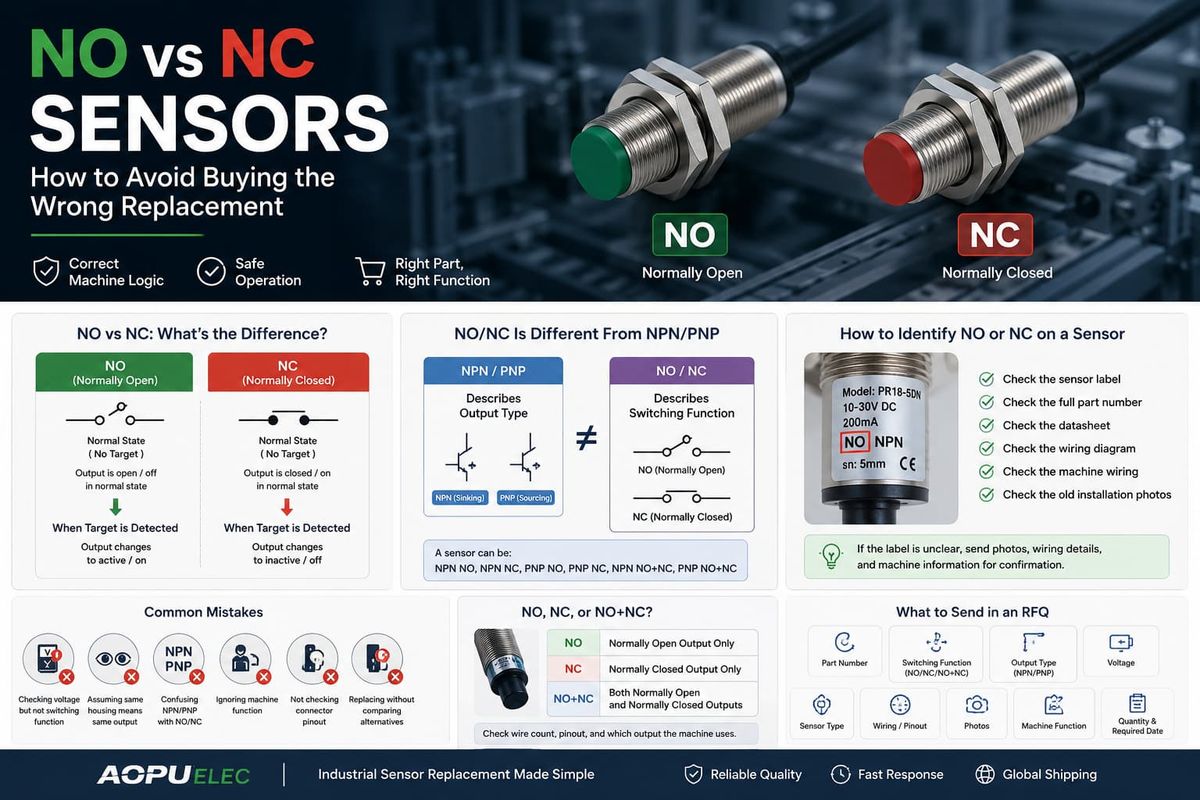

NO vs NC Sensors: How to Avoid Buying the Wrong Replacement

When a sensor fails on industrial equipment, buyers often focus on the part number, voltage, connector, sensing distance, and sensor size. These details are important, but one more detail can decide whether the replacement works correctly: NO or NC switching function.

NO means normally open. NC means normally closed. If this function is wrong, the sensor may fit the machine physically, but the machine signal logic may be reversed.

For example, a machine that expects a signal when an object is detected may behave differently if the replacement sensor sends a signal when the object is not detected. This can cause machine errors, false alarms, failed startup, or unsafe operating behavior.

If you are replacing a proximity sensor, photoelectric sensor, magnetic sensor, reed sensor, or limit switch, you should confirm whether the old sensor is NO, NC, or NO+NC before ordering.

If your first question is about output type, read our guide on NPN vs PNP proximity sensors first. This article focuses on the NO vs NC switching logic buyers should confirm before replacement.

---

Short Answer: What Is the Difference Between NO and NC Sensors?

NO and NC describe the sensor’s normal output state before detection or activation.

A normally open sensor usually has an open output circuit in its normal state. When the sensor detects the target, the output changes state.

A normally closed sensor usually has a closed output circuit in its normal state. When the sensor detects the target, the output changes state in the opposite way.

Sensor Function	Full Name	Normal State	When Target Is Detected
NO	Normally Open	Output is open / off in normal state	Output changes to active / on
NC	Normally Closed	Output is closed / on in normal state	Output changes to inactive / off

The exact electrical behavior depends on the sensor type, output type, wiring, and control circuit. But for replacement sourcing, the most important point is simple: NO and NC are not interchangeable unless the machine logic allows it.

For general definitions of normally open and normally closed contact behavior, buyers can also refer to independent technical references such as electrical contact forms and relay contact terminology.

---

Why NO vs NC Matters in Sensor Replacement

NO and NC sensors can look exactly the same from the outside. Two sensors may have the same body size, same voltage, same cable, same connector, and same sensing distance, but one may be NO and the other may be NC.

If the buyer orders the wrong switching function, the machine may receive the opposite signal.

This can cause problems such as:

• The machine does not start
• The PLC input stays active when it should be inactive
• The machine stops unexpectedly
• A safety or position signal behaves incorrectly
• A detection point appears reversed in the control system
• The sensor light works, but the machine does not respond correctly

For replacement sourcing, NO/NC should be checked together with output type, voltage, connector, pinout, and sensing distance.

For a full sensor replacement process, see our guide on how to find a replacement for a discontinued proximity sensor.

---

NO vs NC Is Different From NPN vs PNP

A common mistake is mixing up NO/NC with NPN/PNP.

They are different specifications.

NPN or PNP describes the sensor output type.
NO or NC describes the switching function.

A sensor can be:

• NPN NO
• NPN NC
• PNP NO
• PNP NC
• NPN NO+NC
• PNP NO+NC

This means buyers must check both details, not only one.

Specification	What It Describes	Example	Replacement Risk
NPN / PNP	Output type	NPN sinking output or PNP sourcing output	Wrong output type may not match the PLC input
NO / NC	Switching function	Normally open or normally closed	Wrong switching function may reverse machine logic

For example, replacing a PNP NO sensor with a PNP NC sensor is still risky, even though both are PNP. The output type may be correct, but the switching behavior is different.

For more background on open collector and transistor output behavior, see this reference on open collector outputs. For practical replacement sourcing, always compare the actual sensor datasheet and wiring diagram before approving a substitute.

---

How to Identify Whether an Old Sensor Is NO or NC

The best way is to check the sensor label, datasheet, part number, wiring diagram, or machine documentation.

Look for markings such as:

• NO
• NC
• NO+NC
• N.O.
• N.C.
• Normally Open
• Normally Closed
• Make contact
• Break contact

Some sensors print the switching function clearly on the label. Others include it only inside the full model number. For example, one letter or number inside the part number may indicate NO or NC, but this depends on the manufacturer.

If the label is damaged or unclear, send photos of the old sensor, wiring, connector face, machine position, and equipment model. AOPUELEC can help check possible replacement options based on available information.

If you do not have a clear part number, this guide may help: how to identify industrial components from photos and markings.

Where to Check	What to Look For	Why It Helps
Sensor label	NO, NC, NO+NC, wiring symbol, output code	Fastest way to confirm switching function
Full part number	Manufacturer model code	Some brands encode NO/NC in the model number
Datasheet	Output function and wiring diagram	Confirms the official electrical behavior
Machine wiring diagram	PLC input logic or sensor circuit	Helps confirm how the machine expects the sensor to behave
Old installation photos	Sensor position, target, cable, connector, control cabinet	Useful when the part number is damaged or missing

If the sensor is part of a machine repair, do not rely only on appearance. Two visually similar sensors may have different NO/NC functions.

---

Normally Open Sensor: When Is It Used?

A normally open sensor is inactive in its normal state. When the sensor detects the target or reaches the trigger condition, the output changes to active.

In many applications, NO sensors are used when the control system only needs a signal after detection.

Common examples may include:

• Detecting that a part is present
• Confirming that a product has reached a position
• Counting objects on a conveyor
• Detecting metal targets with an inductive sensor
• Detecting a cylinder or moving part position

For replacement, buyers should confirm whether the machine expects the signal only when the target is present. If yes, the old sensor may be NO, but this should still be checked against the label or datasheet.

---

Normally Closed Sensor: When Is It Used?

A normally closed sensor is active in its normal state. When the sensor detects the target or reaches the trigger condition, the output changes state.

NC sensors are often used when the system needs to monitor continuity, fault condition, or a default signal state. In some applications, NC logic may help the control system detect cable breaks or sensor failure, depending on the circuit design.

Common examples may include:

• Position monitoring
• Machine interlock signals
• Fault detection logic
• Safety-related monitoring circuits
• Applications where loss of signal must be noticed quickly

Not every NC sensor is used for safety, and not every safety circuit uses a simple NC sensor. The actual machine design must be checked before replacement.

---

What Happens If You Replace NO With NC?

Replacing a NO sensor with an NC sensor can reverse the signal logic.

For example, the machine may think a part is present when it is not present, or it may think a position is not reached when it actually is reached.

Possible results include:

• Machine input stays active at the wrong time
• PLC program reads the opposite condition
• Alarm logic becomes reversed
• Machine cycle does not continue
• Machine starts or stops unexpectedly
• Sensor indicator light works but the machine response is wrong

This is why a sensor replacement should not be approved only by voltage, body size, and connector type.

---

Can NO and NC Sensors Be Interchanged?

Usually, a NO sensor should be replaced with a NO sensor, and an NC sensor should be replaced with an NC sensor.

NO and NC sensors may be interchangeable only if the machine wiring, PLC input logic, or control program is designed to support the change. This should not be assumed during repair sourcing.

If the exact old sensor is unavailable, a compatible alternative may still be possible. But the replacement should be checked against:

• Output type: NPN or PNP
• Switching function: NO or NC
• Voltage
• Sensor type
• Sensing distance
• Connector or cable
• Pinout
• Mounting style
• Machine input logic
• Application requirements

When in doubt, send the old part number, photos, and wiring information before ordering.

For a complete quote-preparation guide, see what to send in an RFQ for hard-to-find industrial parts.

---

What Is NO+NC?

Some sensors provide both normally open and normally closed outputs. These may be called NO+NC, complementary output, or dual-output sensors.

A NO+NC sensor can provide two output states, usually through different wires or pins. This can be useful when the machine needs both signal types or when the same sensor model is used across different equipment designs.

However, buyers should still confirm the wiring diagram carefully. A NO+NC sensor may have more wires or a different connector pinout than a simple NO or NC sensor.

Output Function	Meaning	Buyer Should Confirm
NO	Normally open output only	Machine expects signal only after detection
NC	Normally closed output only	Machine expects signal in normal state
NO+NC	Both normally open and normally closed outputs	Wire count, pinout, and which output the machine uses

If the old sensor has four wires or more, do not assume it is a simple 3-wire NO sensor. The extra wire may be a second output, diagnostic signal, or special function.

---

NO/NC Checks for Different Sensor Types

NO and NC are not only used for proximity sensors. They can also apply to photoelectric sensors, magnetic sensors, reed sensors, limit switches, pressure switches, and other industrial detection devices.

Different sensor types may use different wiring and output terms, so buyers should always check the datasheet or old wiring before ordering.

Sensor Type	NO/NC Detail to Confirm	Common Replacement Risk
Inductive proximity sensor	NO, NC, or NO+NC output	Wrong switching logic or sensing distance
Capacitive proximity sensor	NO/NC function and target material	Wrong detection behavior in application
Photoelectric sensor	Light-on/dark-on, NO/NC, output mode	Output behavior may reverse depending on mode
Magnetic/reed sensor	NO or NC contact behavior	Wrong cylinder or position signal
Limit switch	NO contact, NC contact, or both	Wrong terminal connection or contact logic

Photoelectric sensors may require extra attention because some models use terms such as light-on and dark-on instead of only NO or NC. In those cases, the sensing mode and output behavior must be checked together. For a general background on photoelectric sensor types and light/dark operation, see this reference on photoelectric sensors.

For broader proximity sensor background, buyers can also refer to this overview of proximity sensors.

---

What to Send in an RFQ for NO or NC Sensor Replacement

To help AOPUELEC check the correct replacement, send as much information as possible. The more complete the RFQ, the lower the risk of wrong sensor selection.

RFQ Information	Example	Why AOPUELEC Needs It
Old sensor part number	Full model printed on the sensor label	Helps identify exact model and datasheet
Switching function	NO, NC, or NO+NC	Prevents reversed machine logic
Output type	NPN, PNP, relay output, 2-wire, etc.	Confirms electrical compatibility
Voltage	10–30V DC, 24V DC, 110V AC, etc.	Prevents wrong power supply selection
Sensor type	Inductive, capacitive, photoelectric, magnetic, limit switch	Confirms detection method
Wiring or pinout	Wire colors, connector face photo, terminal numbers	Prevents wiring mismatch
Machine function	Part presence, home position, limit detection, alarm signal	Helps understand expected signal behavior
Photos	Label, body, connector, cable, installation position	Helps confirm physical and marking details
Quantity	1 piece for repair, 10 pieces for maintenance stock	Helps check MOQ and available sourcing options
Required date	Urgent repair or planned maintenance	Helps check lead time and current stock options

If you do not know whether the old sensor is NO or NC, send photos of the label, wiring, connector, and machine installation position. If available, send the wiring diagram or PLC input information.

For general repair sourcing preparation, see what to send in an RFQ for hard-to-find industrial parts.

---

Common Mistakes When Buying Replacement NO or NC Sensors

1. Checking voltage but not switching function

A sensor can have the correct voltage but the wrong NO/NC function. Voltage alone is not enough.

2. Assuming the same housing means the same output

Sensors with the same M8, M12, M18, or M30 housing may have different output logic.

3. Confusing NPN/PNP with NO/NC

NPN/PNP and NO/NC are separate specifications. Buyers should confirm both before ordering. For more detail, read NPN vs PNP proximity sensors.

4. Ignoring machine function

The same sensor type may be used for different machine functions. A part-present signal, home-position signal, and alarm signal may require different logic.

5. Not checking connector pinout

A replacement with the same connector size may still have a different pin assignment.

6. Replacing an old unavailable sensor without comparing alternatives

If the exact model is discontinued, the replacement should be compared by function, not only by size and voltage.

---

When Exact NO or NC Sensor Replacement Is Unavailable

If the exact old sensor is discontinued or unavailable, there may still be replacement options. But the alternative should be checked carefully.

AOPUELEC can help compare possible replacements based on:

• Old part number
• Sensor photos
• Datasheet or wiring diagram
• NO/NC function
• NPN/PNP output type
• Voltage
• Connector or cable
• Sensing distance
• Mounting requirements
• Machine function
• Quantity and required delivery time

Availability must be checked against current stock and supplier options. For discontinued or hard-to-find sensors, condition, lead time, MOQ, and compatibility should be confirmed before shipment.

If supplier risk is a concern, read how to verify industrial component suppliers before shipment. If the offered part condition is unclear, see component condition labels explained.

---

Need Help Checking a NO or NC Sensor Replacement?

If you need to replace a failed or discontinued sensor, send AOPUELEC the old part number, label photos, wiring details, machine function, quantity, and required delivery time.

We can help check current China sourcing options, compare possible replacements, and confirm key details such as NO/NC switching function, NPN/PNP output type, voltage, connector, pinout, sensing distance, and sourcing condition before shipment.

Send your old sensor photo, part number, wiring details, and machine function for a replacement sourcing check.
