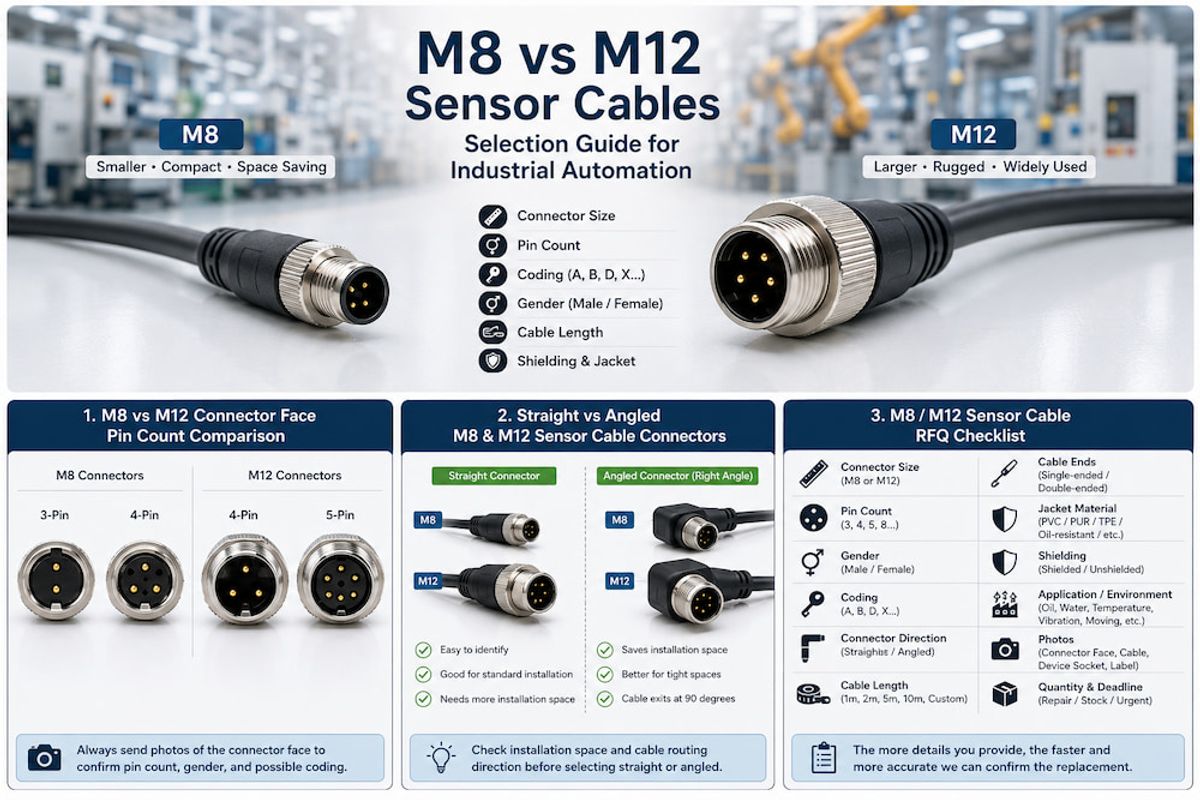

M8 vs M12 Sensor Cables: Selection Guide for Industrial Automation

When replacing a sensor cable in industrial automation equipment, buyers often search by connector size first: M8 or M12.

That is a useful starting point, but it is not enough. A replacement cable must also match the pin count, gender, coding, straight or angled connector style, cable length, jacket material, shielding, and working environment.

An M8 cable and an M12 cable may both be used for sensors and actuators, but they are not interchangeable. Choosing the wrong one can cause installation mismatch, wrong pinout, unstable signal, or a cable that simply cannot connect to the sensor.

If you already know you need an M12 cable, see AOPUELEC’s guide on how to source replacement M12 sensor cables for automation equipment. This article explains how to compare M8 vs M12 sensor cables before ordering.

Short Answer: What Is the Difference Between M8 and M12 Sensor Cables?

M8 and M12 refer to the metric thread size of circular industrial connectors. An M8 connector is smaller than an M12 connector. M12 connectors are larger and are widely used for industrial sensors, actuators, field devices, IO-Link devices, and some industrial network applications.

For replacement sourcing, the difference is not only size. Buyers must also confirm pin count, coding, gender, pinout, cable type, and application.

Item	M8 Sensor Cable	M12 Sensor Cable
Connector size	Smaller circular connector	Larger circular connector
Common use	Compact sensors, small actuators, tight spaces	Industrial sensors, actuators, field devices, IO-Link, automation equipment
Typical advantage	Compact size and space saving	More common in industrial field wiring and more available options
Replacement risk	Wrong pin count, gender, or cable length	Wrong coding, pinout, shielding, or connector direction

The safest way to choose is to match the old cable and device connector, not only the connector diameter.

For technical background on M-series circular connectors, buyers can refer to this overview of IEC metric screw-sized connectors.

Why M8 vs M12 Matters in Replacement Sourcing

Many sensor cable RFQs begin with a simple request such as “M12 cable, 5 meters” or “M8 sensor cable, 4 pin.” This is usually not enough for accurate sourcing.

A useful cable RFQ should confirm:

• M8 or M12 connector size
• Male or female connector
• Straight or angled connector
• Pin count
• Coding
• Cable length
• Shielded or unshielded cable
• PVC, PUR, or other jacket material
• Number of cable ends
• Application environment
• Quantity and required delivery time

If the wrong cable is ordered, the buyer may face a simple installation failure, or a more difficult issue where the connector fits but the machine signal does not work correctly.

For general repair RFQ preparation, see AOPUELEC’s guide on what to send in an RFQ for hard-to-find industrial parts.

M8 Sensor Cables: When Are They Used?

M8 sensor cables are commonly used where space is limited and the sensor body is small. They are often found on compact proximity sensors, small photoelectric sensors, compact actuators, and small automation modules.

M8 cables are useful when equipment design needs a smaller connector, but buyers should pay close attention to pin count and connector style.

Common M8 cable checks include:

• 3-pin, 4-pin, or other pin count
• Male or female connector
• Straight or right-angle connector
• Cable length
• Connector coding
• Sensor voltage and output type
• Cable jacket and environment
• Whether the cable connects directly to a sensor, junction box, or controller

M8 cables are smaller, but that does not mean they are simpler. A compact connector can still have the wrong pinout or wrong cable type.

M12 Sensor Cables: When Are They Used?

M12 sensor cables are widely used in industrial automation because they are rugged, common, and available in many configurations. They may be used for sensors, actuators, valve islands, IO-Link devices, junction boxes, and industrial communication cables.

M12 cables can be used for simple sensor signals, power, IO-Link, Ethernet, and other automation applications depending on the coding and pinout.

Common M12 cable checks include:

• A-coded, B-coded, D-coded, X-coded, or other coding
• 4-pin, 5-pin, 8-pin, or other pin count
• Male or female connector
• Straight or right-angle connector
• Single-ended or double-ended cable
• Shielded or unshielded cable
• Cable jacket material
• IP rating and environment
• Whether it is for sensor signal, power, IO-Link, or data communication

If you are replacing a failed M12 cable, see AOPUELEC’s guide on replacement M12 sensor cables.

M8 vs M12: Key Specs Buyers Should Compare

The connector size is only one part of the selection. Buyers should compare the complete cable specification before ordering.

Specification	What to Confirm	Why It Matters
Connector size	M8 or M12	Controls whether the cable physically fits the device
Gender	Male or female	Wrong gender cannot connect to the mating device
Pin count	3-pin, 4-pin, 5-pin, 8-pin, etc.	Wrong pin count may not connect or may not support the required signal
Coding	A-coded, B-coded, D-coded, X-coded, etc.	Coding prevents incompatible connectors from mating
Connector direction	Straight or angled	Affects installation space and cable routing
Cable length	1 m, 2 m, 5 m, 10 m, or custom length	Too short cannot install; too long may create routing problems
Shielding	Shielded or unshielded	Important for noise-sensitive signals or industrial communication
Jacket material	PVC, PUR, TPE, oil-resistant, drag-chain rated, etc.	Affects durability in industrial environments
Environment	Water, oil, coolant, vibration, outdoor use, temperature	Controls cable life and reliability

If any of these details are unclear, send photos of the old cable, connector face, device socket, and installation area.

M8 vs M12 Pin Count: Why It Matters

Pin count is one of the most common reasons for ordering the wrong sensor cable.

A buyer may ask for an “M12 cable,” but M12 cables can have different pin counts. The same is true for M8 cables. A 3-pin M8 cable is not the same as a 4-pin M8 cable, and a 4-pin M12 cable is not the same as a 5-pin M12 cable.

Pin count affects:

• Power supply wiring
• Sensor output wiring
• IO-Link communication
• Analog signal wiring
• Additional signal lines
• Shielding or grounding arrangement
• Device compatibility

For sensor replacement, the old connector face photo is often very helpful. It lets the sourcing team check the number and arrangement of pins before quoting.

M8 vs M12 Coding: Do Not Ignore the Keyway

Coding is another important detail. Industrial circular connectors may use different keyways to prevent incompatible connections.

For example, many M12 sensor and actuator cables use A-coding. Some industrial network applications use D-coded or X-coded M12 connectors. Other coding types may be used for different signal or power applications.

If the coding is wrong, the connector may not mate with the device even if the size and pin count look similar.

Connector Detail	What Buyers Often Say	What Still Needs Confirmation
M12 A-coded	M12 sensor cable	Pin count, gender, pinout, cable length, shielding
M12 D-coded	M12 Ethernet cable	Data application, shielding, cable category, pin assignment
M12 X-coded	High-speed M12 cable	Ethernet requirement, shielding, environment, device compatibility
M8 connector	M8 sensor cable	Pin count, coding, gender, straight or angled style

Buyers should not only say “M12 sensor cable.” They should confirm whether the cable is A-coded, B-coded, D-coded, X-coded, or another coding type. They should also confirm pin count, gender, pinout, cable length, shielding, and the actual application.

For technical background, buyers can refer to this overview of IEC metric screw-sized connectors. For general connector background, buyers can also refer to this overview of electrical connectors.

For sourcing, however, the actual device datasheet and old cable details should always be checked.

Straight vs Angled Connector: Installation Space Matters

Straight and angled connectors may have the same electrical function, but they install differently.

A straight connector is often easier to identify and may be suitable when there is enough space behind the sensor or device. An angled connector is useful when the cable must turn immediately due to limited space, panel layout, machine frame, or cable routing path.

Before replacing a cable, check:

• Is the old connector straight or angled?
• Is there enough clearance for a straight connector?
• Does the cable need to exit upward, downward, left, or right?
• Will the cable bend too sharply after installation?
• Is the connector used in a moving area?

A cable that is electrically correct but mechanically difficult to route may fail early or create installation problems.

Cable Jacket: PVC, PUR, Shielded, and Environment Checks

The connector is important, but the cable body also matters.

For general use, PVC cables may be acceptable in many standard automation environments. For harsher industrial environments, buyers may need PUR, oil-resistant, coolant-resistant, drag-chain rated, high-flex, or shielded cables.

Environmental factors to confirm include:

• Oil exposure
• Coolant exposure
• Water washdown
• Outdoor use
• UV exposure
• Temperature
• Vibration
• Moving machine parts
• Robot or drag-chain movement
• Electrical noise

Shielded cables may be needed for noise-sensitive signals, analog signals, encoders, or data communication. For basic sensor signals in short, clean runs, unshielded cables may be sufficient, depending on the machine design.

Single-Ended vs Double-Ended Sensor Cables

A single-ended sensor cable has a connector on one side and open wires on the other side. A double-ended cable has connectors on both sides.

Single-ended cables are often used when the cable connects to a terminal block, control cabinet, or field wiring. Double-ended cables are common when connecting sensors to junction boxes, I/O modules, or field devices.

Cable Type	Common Use	What to Confirm
Single-ended cable	Connector to open wires	Wire colors, cable length, connector type, pinout
Double-ended cable	Connector to connector	Both connector types, gender, coding, pinout, cable length
Extension cable	Extend an existing sensor or actuator cable	Male/female ends, pin count, coding, environment

When sending an RFQ, make clear whether the cable has one connector or two connectors.

M8 vs M12 for IO-Link and Sensor Applications

IO-Link systems commonly use standard industrial connector arrangements for sensors and actuators. In many cases, M12 A-coded connectors are widely used, while M8 may appear in compact device designs.

For replacement sourcing, do not only ask for an “IO-Link cable.” Confirm the connector size, pin count, port class if known, cable length, shielding, and device side connector.

Buyers should send:

• Device model
• Master or I/O module model
• Old cable photo
• Connector face photo
• Required length
• Straight or angled style
• Shielded or unshielded requirement
• Quantity

For background on IO-Link connector and cabling conventions, buyers can refer to this overview of IO-Link. For sourcing, the actual device datasheet should always be checked.

What to Send in an RFQ for M8 or M12 Sensor Cables

To quote the correct replacement cable, AOPUELEC needs more than “M8 cable” or “M12 cable.” Send as much of the following information as possible.

RFQ Information	Example	Why AOPUELEC Needs It
Connector size	M8 or M12	Confirms physical connector size
Pin count	3-pin, 4-pin, 5-pin, 8-pin	Prevents wrong connector and wiring selection
Gender	Male or female	Confirms mating compatibility
Coding	A-coded, B-coded, D-coded, X-coded, etc.	Confirms keyway and application compatibility
Connector direction	Straight or angled	Helps match installation space
Cable length	1 m, 2 m, 5 m, 10 m, custom	Confirms routing requirement
Cable ends	Single-ended or double-ended	Confirms whether the other side is open wire or connector
Jacket material	PVC, PUR, oil-resistant, drag-chain rated	Confirms environment durability
Shielding	Shielded or unshielded	Important for signal stability or data communication
Photos	Old cable, connector face, device socket, label	Helps identify details when part number is unclear
Quantity and deadline	5 pcs for repair stock, urgent replacement	Helps check stock, MOQ, and lead time

If the old cable has a label, send a clear photo. If there is no label, send photos of both connector ends and the connected device.

Common Mistakes When Ordering M8 or M12 Sensor Cables

1. Ordering by connector size only

“M12 cable” is not enough. Buyers should also confirm pin count, gender, coding, cable length, and cable type.

2. Ignoring male vs female connector

A cable with the wrong gender will not connect to the device or junction box.

3. Confusing pin count with coding

Pin count and coding are different. A connector may have the right number of pins but the wrong keyway.

4. Forgetting straight vs angled style

A straight connector may not fit in tight installation areas where an angled connector is required.

5. Choosing the wrong jacket material

A cable used near oil, coolant, moving parts, or outdoor conditions may need a more durable jacket.

6. Not sending photos

Photos of the old connector face and installation area can prevent many sourcing errors.

If the cable is part of a wider repair problem and the exact part number is unclear, see AOPUELEC’s guide on how to identify industrial components from photos and markings.

When Exact M8 or M12 Cable Replacement Is Unavailable

If the exact cable is unavailable, a compatible replacement may still be possible. But it should be checked carefully before shipment.

AOPUELEC can help compare alternatives based on:

• Connector size
• Pin count
• Coding
• Gender
• Pinout
• Cable length
• Cable jacket
• Shielding
• Straight or angled connector
• Device application
• Quantity and lead time

Condition, lead time, MOQ, and compatibility should be confirmed before shipment.

For sourcing risk checks, see AOPUELEC’s guide on how to verify industrial component suppliers before shipment. For condition wording, see AOPUELEC’s guide on component condition labels explained.

Need Help Sourcing M8 or M12 Sensor Cables?

If you need to replace an M8 or M12 sensor cable, send AOPUELEC the connector size, pin count, gender, coding, cable length, jacket requirement, photos, quantity, and required delivery time.

We can help check current China sourcing options, compare possible cable replacements, and confirm key details before shipment.

Send your connector photos, cable requirements, quantity, and deadline for a sourcing check.
