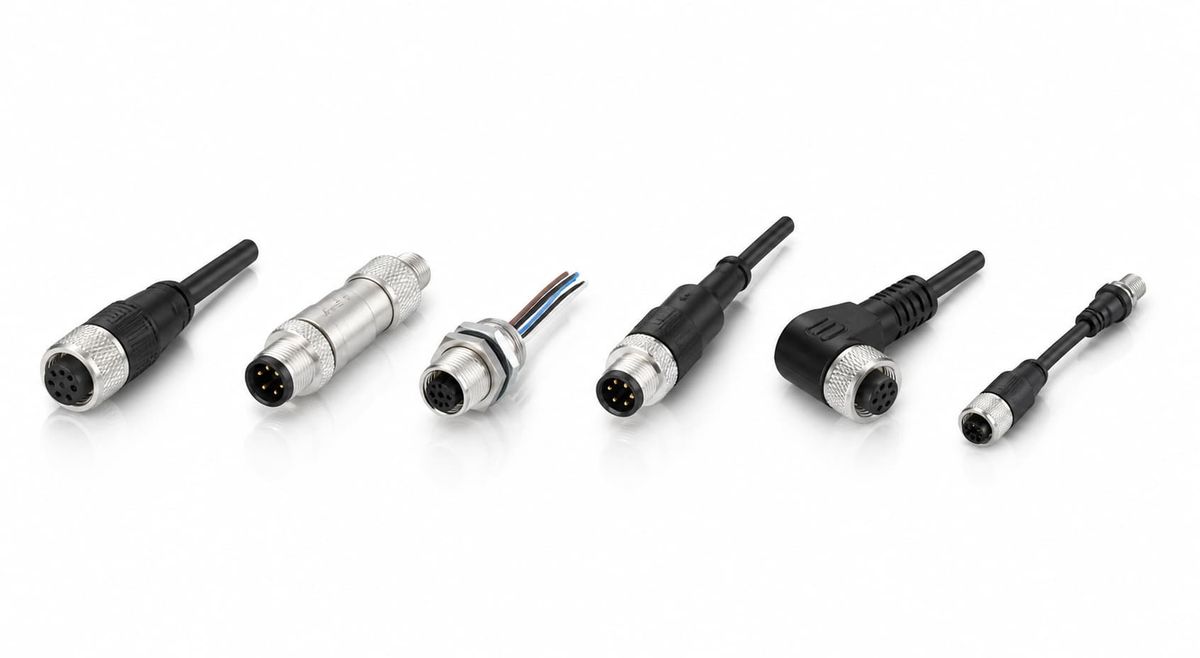

How to Source Replacement M12 Sensor Cables for Automation Equipment
Learn how to source replacement M12 sensor cables by checking coding, pin count, male/female ends, straight or angled connectors, cable length, jacket material, shielding, and environment.
Quick answer: To source a replacement M12 sensor cable, confirm the connector coding, pin count, male/female ends, straight or angled connector shape, cable length, cable jacket material, shielding, LED indicator requirement, voltage/current rating, IP rating, and the device it connects to. Do not order only by the words "M12 cable." Two M12 cables can look similar but fail because the coding, pinout, or cable material is wrong.
M12 sensor cables are common in automation equipment because they make sensor and actuator connections faster, cleaner, and more serviceable. You see them on proximity sensors, photoelectric sensors, IO-Link devices, valve manifolds, distributed I/O blocks, encoders, Ethernet devices, and machine-mounted junction boxes.
The problem is that "M12" only describes the connector size and thread family. It does not tell you the coding, pin count, wiring assignment, cable jacket, shielding, or whether the cable is suitable for coolant, flexing, washdown, or Ethernet communication. A cable that fits mechanically may still be the wrong cable electrically.
What Makes M12 Cable Sourcing Tricky?
Most sourcing mistakes happen because the buyer focuses on the connector diameter and misses the details that make the cable work in the machine. M12 cables can be A-coded, D-coded, X-coded, L-coded, or other coding types. They can have 3, 4, 5, 8, or more pins. They can be male or female, straight or angled, shielded or unshielded, PVC or PUR, with or without LED indicators.
A maintenance buyer may only see a damaged cable on the machine. A procurement buyer may only receive a short message such as "buy M12 cable, 5 m." That is not enough for a reliable replacement.
The M12 Cable Replacement Checklist
Use this checklist before asking for a quote or approving a replacement. It is more useful than a generic product description because it matches the way real automation cables are selected.
| Specification | Why It Matters | What to Send |
|---|---|---|
| Connector coding | Coding prevents the wrong type of cable from mating with a device. A-coded, D-coded, X-coded, and L-coded connectors serve different functions. | Photo of the connector face, device port, or old cable label. |
| Pin count | A 4-pin cable cannot always replace a 5-pin or 8-pin cable, even if the connector body looks similar. | Number of pins or socket holes; clear close-up photo. |
| Gender and end type | The replacement must match male/female ends and whether one end is open wire, M8, M12, RJ45, or another connector. | End A and End B details, or photos of both ends. |
| Straight or angled connector | Angled connectors solve space problems but can point the cable in the wrong direction if orientation is not checked. | Straight/angled requirement and installed space photo. |
| Cable length | Too short creates installation stress; too long can create excess loops, drag, or noise exposure. | Length in meters and whether the cable is fixed or moving. |
| Cable jacket material | PUR and PVC suit different environments. Oil, coolant, abrasion, and motion can make the jacket choice important. | PVC, PUR, TPE, robot cable, drag-chain cable, or unknown. |
| Shielding | Shielded cables may be needed for data, analog signals, encoders, or noisy machine environments. | Shielded/unshielded requirement or device type. |
| LED indicator | Some sensor cables include LEDs for power/output diagnostics. Replacing them with non-LED cables may reduce troubleshooting visibility. | Photo of old connector head or request "with LED" if required. |
| Environment rating | Washdown, coolant, welding spatter, outdoor use, dust, and vibration affect the cable choice. | Machine area, liquid exposure, IP rating need, and temperature range. |
| Device application | A sensor cable, IO-Link cable, Ethernet cable, and power cable may all use M12 connectors but are not interchangeable. | Connected device type and model number if available. |
Do Not Treat All M12 Coding as the Same
The most important first check is connector coding. Balluff explains that M12 coding types are designed for different functions and that the device generally determines which cable is required. ifm also notes that A-coded M12 connectors are mainly used for sensor and actuator signals, while D-coded and X-coded versions are used for data transmission applications.
In sourcing terms, coding is not a small detail. It is the mechanical and electrical clue that prevents buyers from ordering a sensor cable for an Ethernet port, or a data cable for a power connection.
| M12 Coding | Common Use | Buyer Risk |
|---|---|---|
| A-coded | Common sensor, actuator, discrete I/O, analog, and IO-Link device connections. | Wrong pin count, wrong gender, or wrong cable material can still cause problems. |
| B-coded | Legacy fieldbus applications such as PROFIBUS in some installations. | May be confused with A-coded if the buyer only says "M12 5-pin." |
| D-coded | Industrial Ethernet, commonly 4-pin. | Not a normal sensor cable; shielding and data performance matter. |
| X-coded | Higher-speed Ethernet applications, commonly 8-pin. | Should not be replaced with a generic 8-pin A-coded cable. |
| L-coded or T-coded | Power transmission for automation modules and distributed devices. | Current rating, voltage, and conductor size must be checked carefully. |
Pin Count Is Not Optional
A buyer may ask for an M12 cable and forget to mention the pin count. That can create a wrong match immediately. A 4-pin A-coded cable is common for many sensors, but 5-pin and 8-pin variants are also common. An IO-Link port may use a typical A-coded M12 arrangement, but the actual device and port class still decide the wiring.
When you send an RFQ, include the pin count from both ends of the cable. If the cable is damaged, send a close-up photo of the connector face. A clear photo often prevents a wrong order faster than a long written description.
Male/Female Ends and Cable Direction
M12 cable descriptions often include male plug, female socket, straight, angled, molded, field-wireable, open lead, double-ended, or extension cable. These words matter because they decide whether the cable can physically connect the sensor, I/O block, or junction box.
| Cable Format | Common Situation | What to Confirm |
|---|---|---|
| Female M12 to open leads | Sensor cable wired into a panel, terminal strip, or junction box. | Pinout, wire colors, length, jacket material, and LED option. |
| M12 male to M12 female | Extension cable between sensor/device and I/O module. | Coding, pin count, straight/angled ends, shielding, and length. |
| M8 to M12 adapter cable | Smaller sensor connects to larger junction box or I/O port. | M8 pin count, M12 pin count, cable wiring, and device compatibility. |
| Y-splitter cable | Two sensors or channels connect to one port in certain machine layouts. | Wiring scheme, port assignment, current load, and whether the device supports it. |
| M12 to RJ45 | Industrial Ethernet device connects to standard Ethernet infrastructure. | D-coded or X-coded requirement, shielding, cable category, and environment rating. |
Straight vs Angled Connectors
A straight connector is not automatically better than an angled connector. A straight connector may be easier to route in open areas. An angled connector may be necessary when the sensor is close to a machine frame, guard, tooling area, or conveyor structure.
The important detail is direction. An angled connector can point the cable into the wrong side of the machine if orientation is not checked. When replacing an angled cable, send a photo of the installed connector, not just the cable label.
PUR vs PVC Cable Jacket
Cable jacket material is one of the easiest details to miss. ifm explains that PUR cables are used where higher mechanical and chemical resistance is needed, including dynamic applications, while PVC is more cost-effective for static installations with lower mechanical stress.
For buyers, the practical question is not "which cable is cheaper?" It is "what will the cable experience after installation?" A cable that works on a clean cabinet door may fail early near coolant, oil, vibration, welding spatter, or repeated bending.
| Environment | Cable Detail to Check | Sourcing Note |
|---|---|---|
| Static control cabinet or protected machine area | PVC or standard industrial cable may be enough. | Still confirm voltage/current and connector details. |
| Oil, coolant, or machine tool area | Oil-resistant jacket, often PUR or application-specific cable. | Ask for material and chemical exposure suitability. |
| Moving arm, sliding axis, or drag chain | High-flex or drag-chain-rated cable. | Do not replace with a basic static cable. |
| Washdown or wet area | IP rating, seal design, jacket material, and connector tightening. | Photos of old connector corrosion or water ingress help. |
| Analog signal, encoder, or Ethernet | Shielding and data/signal cable type. | A generic unshielded sensor cable may create noise problems. |
When a Cheaper Cable Is a Bad Replacement
Low price can be attractive when a cable looks simple, but replacement cost should be judged against downtime risk. A cheaper cable may use the wrong jacket, poor strain relief, weak sealing, thin conductors, or the wrong shielding. If the cable is on a moving machine, a washdown line, or a noisy signal path, the wrong choice can create repeat failures.
AOPUELEC's view is direct: the right replacement cable is the one that fits the device, the wiring, and the environment. Price matters, but not more than correct specification.
What to Send for an M12 Sensor Cable RFQ
For a faster quote, send the old cable part number if available. If not, photos can usually provide enough starting information for a sourcing check. Send both connector ends and the installed position if space or angle matters.
| Old Cable Part Number | Full model code from the label, old invoice, spare list, or cable jacket marking. |
|---|---|
| Connector Photos | Clear photos of each connector face, connector body, and locking nut. |
| End A / End B | Male or female, M8/M12/RJ45/open wire, straight or angled. |
| Coding and Pin Count | A-coded, D-coded, X-coded, L-coded, or unknown; 3/4/5/8 pins or visible holes. |
| Cable Length | Required length in meters, and whether extra length is acceptable. |
| Jacket and Environment | PVC, PUR, shielded, high-flex, oil-resistant, washdown, or other condition. |
| Connected Device | Sensor, actuator, IO-Link master, I/O block, Ethernet device, valve manifold, or machine model. |
| Quantity and Urgency | Repair quantity, spare stock quantity, planned maintenance date, or urgent machine-down need. |
Example RFQ Messages
| Weak Request | Better Request |
|---|---|
| "Need M12 cable, 5 meters." | "Need M12 A-coded 4-pin female straight to open leads, 5 m, PUR jacket, for 24 VDC proximity sensor. Photos attached." |
| "Need Ethernet cable for machine." | "Need M12 D-coded male to RJ45 industrial Ethernet cable, 10 m, shielded, suitable for factory automation cabinet. Device photo attached." |
| "Need same cable, any brand." | "Exact brand not required, but must match M12 male to M12 female, A-coded, 5-pin, angled sensor side, straight module side, 3 m length, oil-resistant jacket." |
Final Checklist Before You Buy
Connector coding is confirmed.
Pin count is confirmed on both ends.
Male/female ends are correct.
Straight or angled connector direction is checked.
Cable length is correct for routing and strain relief.
PUR, PVC, shielded, or high-flex requirements are reviewed.
Connected device type is known.
Environment risks such as oil, coolant, washdown, vibration, or motion are considered.
Photos and old part number are sent before quoting when exact details are unclear.
If you need replacement M12 sensor cables for automation equipment, send AOPUELEC the connector photos, pin count, coding, cable length, connected device, and machine environment. A complete cable RFQ helps avoid small specification mistakes that can turn a simple replacement into another machine stop.
Frequently Asked Questions
Can You Replace M12 With M8 or Another Connector?
Sometimes an adapter cable can connect an M8 device to an M12 junction box or I/O block. This is common in compact sensors and automation assemblies. But adapter cables are not magic. The wiring assignment, pin count, output type, and device current must still be checked. If the original machine used a specific adapter, splitter, or molded cable assembly, send photos and markings. A generic adapter may fit physically but route the wrong pins.
Are all M12 sensor cables interchangeable?
No. M12 describes the connector size, not the full specification. Coding, pin count, gender, pinout, cable material, shielding, and environment rating must be checked.
What is the most common M12 cable for sensors?
Many sensor and actuator connections use A-coded M12 cables, often with 3, 4, or 5 pins. But the device port decides the correct cable, so confirm the actual connector before buying.
Can I use an Ethernet M12 cable as a sensor cable?
Usually no. D-coded and X-coded M12 cables are used for data transmission applications. A sensor cable and an Ethernet cable may both be M12, but they are selected for different functions.
Should I choose PUR or PVC?
PVC may be suitable for static, low-stress installations. PUR is usually preferred when the cable faces more mechanical stress, oil, chemicals, abrasion, or movement. Confirm the machine environment before choosing.
What if the old cable has no label?
Send photos of both connector ends, the device port, the installed cable route, and the connected device. Also measure the required cable length and note whether the cable moves during machine operation.
