How to Replace a DIN Rail Power Supply: Specs Buyers Should Confirm

Quick answer: Before replacing a DIN rail power supply, confirm the input voltage, output voltage, output current, wattage, phase type, terminal layout, mounting size, DIN rail type, operating temperature, derating, approvals, protection functions, and whether the replacement must be exact or only electrically compatible. If you are sending an RFQ, include a clear label photo, wiring-side photo, cabinet photo, output load information, and any required certification or brand preference.

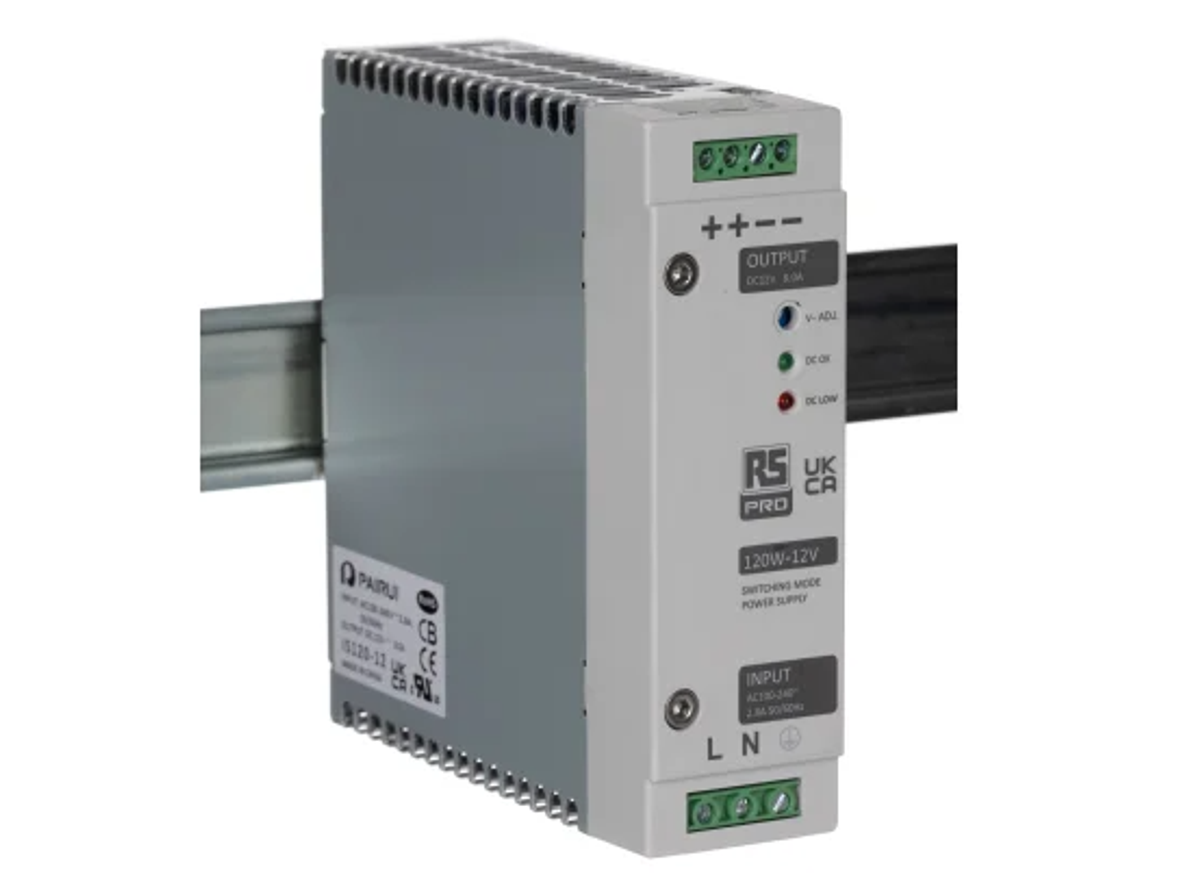

A DIN rail power supply often looks simple from the outside: a rectangular module in a control cabinet with AC input on one side and DC output on the other. But a replacement decision should not be based only on the output voltage printed on the label. Two 24VDC power supplies can differ in current rating, input range, width, terminal position, derating behavior, alarm contacts, approvals, and short-circuit protection.

This guide is written for buyers, maintenance teams, and sourcing staff. It is not a wiring tutorial. Installation should be handled by qualified personnel according to the equipment manual, local electrical requirements, and site safety procedures. The sourcing job is to make sure the part you order is technically suitable before anyone opens the cabinet.

Start With the Old Power Supply Label

The old label is the fastest way to avoid a wrong quote. Ask for a straight, readable photo of the full label, not only the brand logo or output voltage. The model number may encode wattage, output voltage, input range, series, alarm function, redundancy features, or version details.

If the old unit has failed and the exact model is discontinued, the label still matters. It gives the sourcing team a starting point for exact stock, compatible replacements, and possible alternatives. Without it, the buyer may receive quotes for units that fit electrically but not physically, or units that fit the cabinet but do not supply enough current.

The Core Specs Buyers Should Confirm

The table below gives the practical RFQ checklist. For urgent repair, you do not need a perfect engineering report. But you should confirm enough information to avoid a mismatch.

Input Voltage Is More Than a Small Detail

Many control panels use 100-240VAC single-phase input power supplies. Others use three-phase input, DC input, or wide-range units. A replacement with the wrong input range may fail immediately, fail under load, or create an unsafe installation condition.

For international sourcing, input voltage is especially important. A machine built for one region may not match the buyer's local supply environment. If the old label is unclear, send the equipment model and cabinet photo so the sourcing team can avoid guessing.

Output Current and Wattage Need Margin

Do not replace a DIN rail power supply only by matching output voltage. A 24VDC 2.5A unit and a 24VDC 10A unit are not interchangeable for the same load. The output current and wattage must support the devices connected to the supply: PLCs, sensors, relays, HMIs, I/O modules, solenoids, communication devices, and other cabinet loads.

If the old supply failed because the load increased, replacing it with the same undersized unit may repeat the problem. A buyer can ask the maintenance team for the load current, fuse sizes, connected device list, or at least a cabinet photo. This helps determine whether an exact replacement is enough or whether a higher-rated unit should be considered by the engineer.

Check Derating, Cabinet Heat, and Ventilation

DIN rail power supplies produce heat. Manufacturer manuals and datasheets often specify mounting orientation, ventilation clearance, operating temperature, and derating curves. MEAN WELL's general DIN rail installation manual, for example, gives clearance and mounting-orientation guidance to help prevent overheating. PULS and Phoenix Contact product data also show derating and operating-temperature information as normal selection details.

For buyers, the practical question is simple: will the replacement deliver the required output inside the real cabinet temperature? A unit that supplies full power at room temperature may need derating at higher temperatures. If the control cabinet is crowded, poorly ventilated, exposed to heat, or installed outdoors, choose a replacement only after checking the datasheet.

Physical Fit Can Stop a Good Electrical Replacement

A compatible power supply can still be unusable if it does not fit the panel. Width is often the first problem. A replacement may be electrically stronger but too wide for the available DIN rail space. Depth can also matter when the cabinet door is shallow or when wire ducts are close to the rail.

Terminal layout is the second problem. If the old unit has input terminals at the bottom and output terminals at the top, a replacement with a different layout may require wiring changes. That may be acceptable in a planned rebuild, but not in a fast maintenance repair.

Approvals and Protection Features Should Match the Application

Approvals are not decoration. A replacement used in an export machine, regulated industry, or customer-controlled production line may need specific approvals. Buyers should confirm required marks before ordering, especially for UL, CE, UKCA, Class 2, or application-specific requirements.

Protection features also matter. Short-circuit protection, overload protection, overvoltage protection, overtemperature protection, DC OK relay output, power boost, active PFC, or redundancy support may be important depending on the machine. If the old model has signal terminals, alarm contacts, or redundancy wiring, send photos before asking for alternatives.

Exact Replacement or Compatible Alternative?

The safest sourcing path is usually the exact same model, especially when the machine is validated, the wiring is fixed, or the customer does not want changes. But exact stock may be discontinued, expensive, or unavailable in the required lead time. In that case, a compatible alternative may be possible.

A compatible DIN rail power supply should not be selected only because it has the same output voltage. It should be compared across input, output, power, derating, dimensions, terminals, approvals, and functions. For an urgent repair, the buyer can ask AOPUELEC to quote exact stock first and list compatible options separately, with differences clearly marked.

What to Send AOPUELEC for a Faster Quote

A complete RFQ reduces back-and-forth and helps separate exact stock from risky alternatives. Send the following if available.

Common Replacement Mistakes

The most common mistake is matching only the output voltage. The second is ignoring cabinet space. The third is accepting a compatible replacement without checking terminal layout, derating, or approvals.

Another mistake is using a quote description that is too vague. "Need 24V power supply" is not enough for industrial sourcing. A better RFQ says: "Need replacement for 24VDC DIN rail power supply, original model ABC-120-24, input 100-240VAC, output 24V 5A, width about 40 mm, CE/UL required, exact preferred but compatible acceptable if dimensions and terminals match."

How AOPUELEC Can Help

AOPUELEC can help buyers organize the replacement search by checking exact model availability, identifying possible compatible units, comparing key specs, and asking suppliers for actual stock photos and condition details before shipment. For obsolete or urgent DIN rail power supplies, the goal is not only to find a price. The goal is to avoid a replacement that looks close but cannot be installed or approved.

If exact stock is unavailable, AOPUELEC can help prepare a comparison for buyer review. The final installation decision should remain with the buyer's engineer or qualified technician, but a better sourcing comparison makes that decision easier.

Final Buyer Checklist

Before approving a DIN rail power supply replacement, confirm the input, output, wattage, current, mounting size, terminal layout, operating temperature, derating, approvals, and required functions. Then decide whether the order must be exact replacement stock or whether a compatible alternative is acceptable.

If you need help sourcing a replacement DIN rail power supply, send AOPUELEC the old model number, label photo, wiring-side photo, cabinet photo, quantity, deadline, and required approvals. The clearer the RFQ, the faster we can separate exact stock from safe alternatives.
