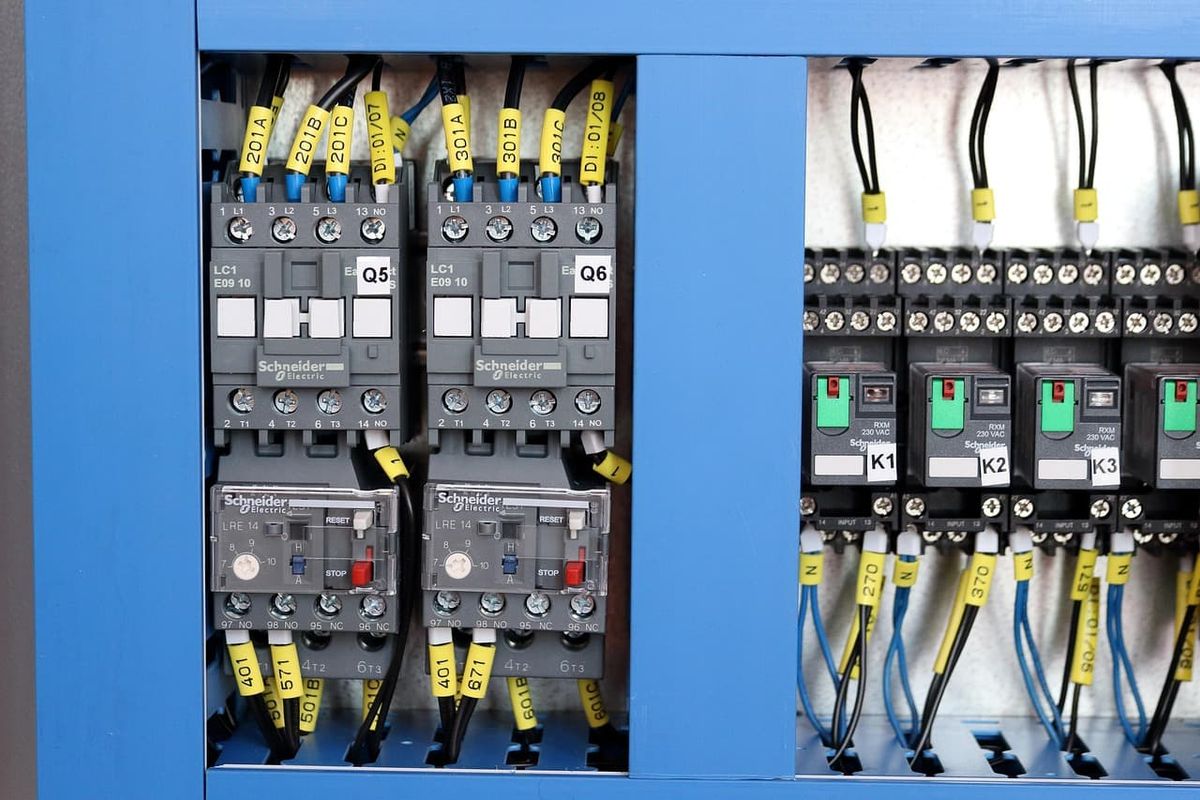

How to Source Obsolete Relays for Industrial Repair

Quick answer: To source an obsolete relay, send the full relay model, brand, coil voltage, AC/DC coil type, contact form, contact rating, socket or pin layout, load type, photos of the relay and base, and equipment application. If exact stock is unavailable, compare compatible relays carefully before buying. A relay that looks similar can still fail if the coil, contacts, load rating, pinout, or approvals are different.

Relays are common failure points in industrial repair. They switch motors, solenoids, heaters, alarms, lights, control signals, PLC inputs, and safety circuits. When an old relay is discontinued, it is tempting to search only the printed model number and buy the first similar-looking item. That is risky.

A relay replacement is not only a size match. The coil, contacts, load, socket, terminal layout, suppression, approvals, and application all matter. This guide explains what buyers should confirm before asking AOPUELEC to source obsolete relay stock or compare alternatives.

Start With the Relay Label and Socket

The relay label usually contains the brand, series, model, coil voltage, contact rating, and sometimes contact form. But the label is not always enough. Many industrial relays plug into a socket, base, or relay module. The socket wiring and pin layout can decide whether a replacement is practical.

Take photos of the relay top, side label, bottom pins, socket, wiring, and equipment area before removing anything. If removal is required, it should be handled by qualified personnel with the machine safely isolated.

Relay Specs Buyers Must Confirm

The following details should be checked before approving exact stock or a compatible replacement.

Relay replacement checks for obsolete or discontinued industrial relays.

Coil Voltage Is the First Hard Stop

Relay coil voltage is not optional. If the old relay uses a 24VDC coil, a 24VAC relay is not a safe substitute unless the circuit is redesigned and approved. Likewise, 110VAC, 120VAC, 220VAC, 230VAC, and 12VDC versions may look nearly identical but behave differently.

Some relay families use the same case size for many coil voltages. That is good for sourcing, but dangerous if the buyer only sends a front photo without the full model suffix. Always send the complete marking and control voltage if known.

Contact Form Must Match the Circuit

The contact form tells how the relay switches the load. A normally open relay, normally closed relay, changeover relay, DPDT relay, and multi-pole relay perform different circuit functions. A wrong contact form can cause the machine to fail, stay on, stay off, or behave unpredictably.

Manufacturers describe contact arrangement in different ways, such as NO/NC, SPST/SPDT/DPDT, or Form A/Form B/Form C. When exact wording is unclear, send the datasheet, socket wiring photo, or old circuit diagram.

Contact Rating Depends on the Load

Relay contact rating is not just one amp number. A contact that can switch a resistive load may not be suitable for an inductive motor, solenoid, transformer, lamp, or capacitive load at the same current. Omron notes that relay life depends on electrical and mechanical durability, and selection should match the equipment, load, and application.

If the relay switches a motor, solenoid, heater, lamp, or high-inrush load, tell the sourcing team. Panasonic relay selection data, for example, separates details such as contact arrangement, contact material, resistive load rating, minimum switching load, maximum switching voltage, and coil data. These details matter when an exact relay is discontinued and a substitute is being considered.

Do Not Ignore the Socket or PCB Footprint

A replacement relay may have the correct coil and contact rating but still not fit. Plug-in relays need the right socket or base. PCB relays need the right footprint, pin spacing, and height. Interface relays need compatible relay modules or terminal blocks.

For urgent repair, the easiest path is often exact stock or a relay that fits the existing socket. If a new socket or wiring change is required, the buyer's engineer should approve it before purchase.

What to Send AOPUELEC for an Obsolete Relay RFQ

A complete RFQ helps separate exact obsolete stock from possible alternatives.

Exact Relay or Compatible Replacement?

The exact relay is usually the lowest-change option when the machine is already validated, the socket is fixed, or the customer does not want wiring changes. But exact obsolete stock may be unavailable, old surplus, expensive, or only available in small quantities.

A compatible relay may be possible if coil voltage, contact form, contact rating, load type, socket or footprint, dimensions, and approvals match. The quote should clearly mark whether the offered relay is exact stock, same series, equivalent replacement, compatible alternative, or uncertain.

Special Cases: Safety Relays, Latching Relays, and Signal Loads

Safety relays

Safety relays should not be replaced casually. Panasonic and other manufacturers distinguish safety relays from general-purpose relays because safety circuits can require specific contact structures and application approvals. If the relay is part of a safety circuit, send the full machine/safety context and involve a qualified engineer.

Latching relays

Latching relays behave differently from standard relays. Some use one coil, some use two coils, and the control logic may be different. Do not replace a latching relay with a standard relay just because the contact rating looks similar.

Low-level signal loads

Relays used for small signals may require suitable contact material or minimum load performance. Omron's relay guidance discusses minimum applicable load and contact suitability, which can matter for PLC signals and low-current circuits.

How AOPUELEC Can Help

AOPUELEC can help buyers check exact obsolete relay stock, compare datasheets, request actual stock photos, and separate new original, new surplus, compatible, refurbished, or used condition. For urgent repair, we can also help organize options by risk: exact model first, same series second, compatible alternatives only when key specs are clear.

If the old relay marking is damaged or the model is unknown, start with the AOPUELEC guide on identifying industrial components from photos. If you already have the full relay model, send it with photos and application details for a faster quote.

Final Rule Before Buying an Obsolete Relay

Do not buy an obsolete relay based only on a similar picture or one amp rating. Confirm the coil, contact form, contact rating, load, socket, footprint, suppression options, approvals, and condition. The clearer the RFQ, the easier it is to find exact stock or a safer compatible replacement.

If you need help sourcing an obsolete relay, send AOPUELEC the full model, photos, coil voltage, contact information, socket details, load type, quantity, condition requirement, and deadline.
